On most cars a water pump is a bolt-on part you can see. On this generation of Explorer, it's buried behind the timing cover. So a part that costs a couple hundred dollars comes with a labor bill that makes people spit out their coffee. Here's what's going on and how to decide what to do.
Which Explorers have the internal pump

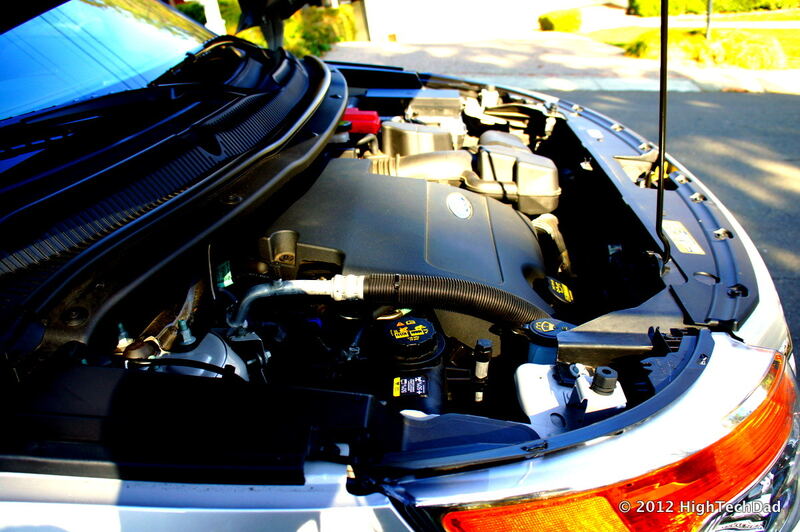

The Autopian lists the 2011-2019 Ford Explorer among the vehicles using Ford's transversely mounted 3.5L and 3.7L "Cyclone" V6s with an internal, chain-driven water pump. The same engine family is in the 2007-2018 Edge and Flex, the 2008-2019 Taurus and several Lincolns, so it's a well-known story among Ford techs.
The 2020 and newer Explorer is a different design, which is why RepairPal's water pump estimates for those years are so much lower. If your Explorer has a four-cylinder EcoBoost instead of the V6, ask your shop which pump setup it has before assuming the worst.
Why it fails, and why that's a big deal
The pump lives right next to the oil-lubricated timing chain cavity, sealed off by seals and bearings. Over time the seals age and leak, the drive bearings wear, and the plastic impeller vanes can break. Normally a leak escapes through a tiny weep hole. The real nightmare is when the seal fails inward and coolant mixes with the engine oil. Coolant-thinned oil doesn't protect bearings, and the engine can be ruined.
Signs your pump is going
- The coolant reservoir keeps dropping and you can't find a puddle
- The temperature gauge climbs, or you get an overheating warning
- A sweet coolant smell after driving
- Oil on the dipstick that looks milky or like chocolate milk (coolant in the oil, stop driving)
What it costs by model year
| Explorer model years | RepairPal water pump estimate |
|---|---|
| 2011 | $1,838-$2,454 |
| 2012 | $1,920-$2,535 |
| 2013-2015 | $1,881-$2,496 |
| 2016-2017 | $1,874-$2,472 |
| 2023-2024 | $682-$866 |
| 2025-2026 | $553-$650 |
RepairPal doesn't show a figure for 2018-2019, but those years use the same V6 layout, so plan on the 2016-2017 range. Most of that money is labor. The Autopian cites book times of 10.8 hours for a 2011 AWD Flex with the 3.5L and 12.3 hours for a Flex EcoBoost (same engine family), and works out about $1,500 as a low-end bill using a $152.91 OEM pump, coolant and supplies. Some owners report bills over $2,000.
When coolant has already hit the oil
Once coolant mixes with the oil, the pump is no longer the main problem. The Autopian's take is that a good used engine is usually the sensible path at that point. For the same engine in the Flex, it cites a mid-range quote of about $5,000 for an engine replacement, with some owners quoted over $7,000.
Repair or replace? The quick math
Picture two Explorers with the same failing pump.
- Explorer A: pump caught early, oil is clean, tires and brakes are fine, no other big repairs coming. Paying around $2,000 to keep a paid-off SUV running is usually the better deal.
- Explorer B: milky oil, high miles, and it also needs a transmission service and tires. You're now stacking an engine swap on top of everything else. That's the one to price out against its trade-in value before spending anything.
A simple rule: look up your Explorer's private-party value on a site like KBB. If the total repair list is more than half of that number, get a second quote and think hard about selling. Our repair or replace calculator can help you run the numbers.
What to ask the shop before paying
- "Is the oil contaminated with coolant? Can you show me?"
- "Are you using an OEM pump?"
- "Since the timing cover is off anyway, what else should be replaced now to avoid paying the same labor twice?"
- "Is the quote for parts and labor, coolant and supplies, all in?"
- "If you find engine damage once it's apart, will you call me before going further?"
Is it worth fixing?
If you catch it early and the oil is clean, usually yes. About $1,800-$2,500 is a lot, but it's less than a replacement SUV. If coolant is already in the oil, the math flips fast, and selling or trading it in can be the smarter move.
