It feels like a cruel joke. Your Model 3 says 70% charge, yet the door handles won't pop, the screen is black and the app says the car is offline. That combo almost always points at the little battery, not the big one.
Why a 12V battery matters on an EV
The main high-voltage pack moves the car. The low-voltage battery runs everything that has to be awake before the pack connects: the computers, door handles, lights and the contactors that link the pack to the rest of the car. If it's flat, the car can't "turn on" the high-voltage side at all.
Which battery does your Model 3 have?
| Build | Battery type | Typical life | Notes |
|---|---|---|---|
| 2017 to about late 2021 | 12V lead-acid (AGM) | About 2 to 4 years | Can fail with little warning |
| About late 2021 onward, including 2024+ refreshed Model 3 | Lithium-ion low-voltage battery | No fixed interval, usually much longer | Usually gives days to a couple of weeks of warning |
Per TSLNA's guide, the switch happened around October 2021 for Shanghai-built cars and December 2021 for Fremont-built cars. The two types are not interchangeable, so don't buy a battery until you know which one you have.
Warning signs
- A touchscreen alert like "12V battery needs service" or "Car needs service, power may be reduced"
- The screen is slow, freezes or reboots on its own
- Dim or flickering lights
- Door handles that respond late, or not at all
- The app shows the car offline more than usual
Getting into a completely dead Model 3
Tesla's owner's manual covers this. You need a portable jump pack (Tesla says an external low-voltage power supply). Here's the short version:
- Open the hood first. Press the top right edge of the front tow eye cover until it pivots, pull it out and pull out the red and black wires behind it.
- Connect the pack: red to red (+), black to black (-), then switch it on. The hood latches release right away.
- Disconnect within 30 seconds. Tesla says not to leave the cables on those wires longer than that. They only release the hood. They do not charge the battery.

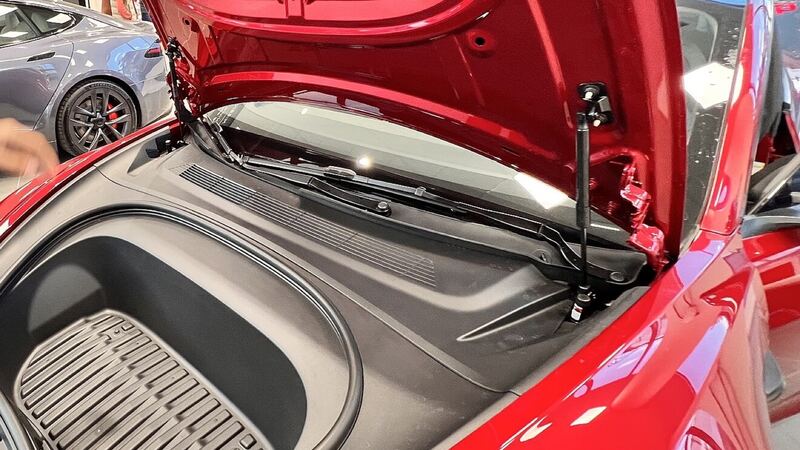

- Jump it from the frunk. Pull up the maintenance panel, remove the red cover, connect red to the positive jump post and black to the ground bolt next to the brake fluid reservoir. Turn the pack on and touch the screen. It can take several minutes to wake.
- Disconnect black first when you're done, then put the panel back.
What replacement costs
| Option | Typical cost | Good to know |
|---|---|---|
| Under the 4-year/50,000-mile Basic Vehicle Limited Warranty | Usually $0 | Book through the Tesla app |
| Tesla Mobile Service, out of warranty | About $100 to $300 installed (TSLNA) | Diagnostic fees may add more |
| General repair-cost estimate | About $250 to $450 (Recharged) | Parts plus labor, outside warranty |
| DIY lead-acid part only (2017 to late-2021 cars) | About $85 to $150 | Lithium units have no public DIY procedure |
Easy things to try first
- Check the alert history. A one-time alert after the car sat for weeks is different from a repeating one.
- Limit phantom wake-ups. Lots of third-party apps polling the car, or Sentry Mode running all day, keep the electronics busy. That isn't a fix for a bad battery, but it can explain a lot of drain.
- Keep the main pack plugged in. The big pack recharges the 12V battery when it can. A car sitting at a very low state of charge for a long time is a bad recipe.
- Carry a small jump pack. It's cheap insurance and gets you into the car without a tow.
What to ask Tesla or a shop
- "Is this battery lead-acid or lithium, and is that what you're installing?"
- "Is it covered under my basic warranty?"
- "Is the alert definitely the 12V battery, or a DC-DC converter or other charging fault?"
- "Is there a diagnostic fee if it's not the battery?"
Is it worth fixing?
Yes, every time. This is one of the cheapest repairs a Model 3 will ever need, and skipping it means the car can leave you stranded with a full charge. If you're shopping for a used 2017 to 2021 Model 3, ask when the 12V battery was last replaced. If it's the original lead-acid one, budget for it.
More Model 3 fixes are on the Tesla Model 3 repair page. Got a cracked windshield too? See our Model 3 windshield and glass roof cost guide. Prices checked October 14, 2026.
